1/2″ Forged Dee Ring 12000lbs Full Size
Video

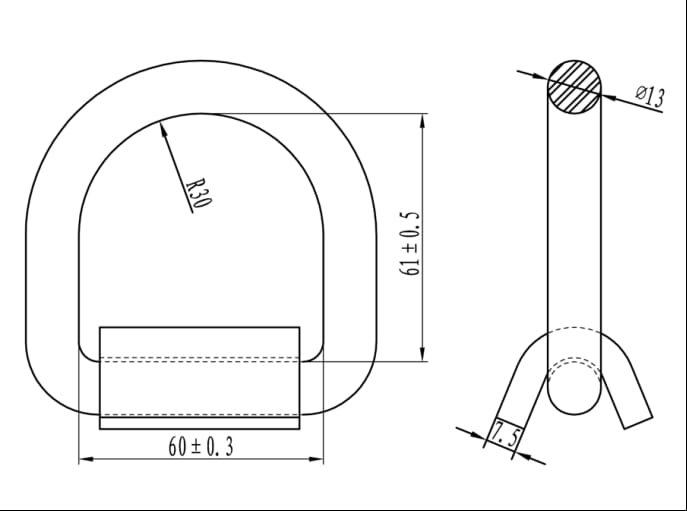

Product Parameters
|
Steel Products |
Forged D-Ring |
|
|
Item No. |
D3001 |
|
|
Item Name |
Forged Dee Ring |
|
|
Finishing |
Spray with oil |
|
|
Colour |
Self Colour |
|
|
MBS |
5500kgs/12100lbs |
|
|
Size |
 |
|
Application Fields
It is mainly used for boxcar, trailer, hatch cover, deck, container pillar and binding bridge, and it is also used for the bilge of multi-purpose ship. Its main function is to form a fastening system to fix the container as a fastening point, binding rod, connecting with equipment body and drawstring and load hook as a fastening point, etc.
Technical Feature
1. Versatile
This weld-on D-ring tie down anchor is great for securing cargo loads on heavy-duty flatbed trailers and flatbed trucks.
2. Highly Versatile
Add useful, versatile towing options to your vehicle with this class 1 trailer hitch. It provides a standard receiver hitch, allowing you to tow a small trailer or mount a cargo carrier or bike rack
3. Easy To Use
Once installed, this bull ring tie down anchor is fast and convenient to use. The trailer shackle provides a generous opening to tie down ropes, cables, ratchet straps or binder chains.
4. Heavy-Duty.
This trailer D-ring tie down is constructed from solid, forged steel for heavy-duty strength. The weld-on bracket provides a sturdy base for it.
5. Ready To Weld.
This trailer tie down ring comes with a raw steel finish to be ready for welding right out of the package

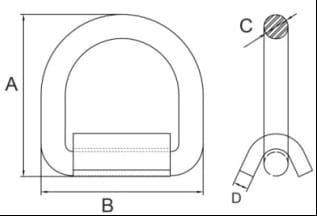

Parts Of Series
We have full set of forged D ring with dimension from ½” to 1”, with different break strength to meet different requirements.
|
Item code |
A |
B |
C |
D |
MBS |
Weight |
|
|
| D3001 | 3 1/2" | 3 1/4" | 1/2" | 13mm | 7.5mm | 12000lbs/5500kgs |
425g |
|
| D3002 | 4 1/4" | 4 1/4" | 5/8" | 16mm | 10mm | 18000lbs/8000kgs |
809g |
|
| D3003 | 4 1/2" | 4 1/2" | 3/4" | 20mm | 10mm | 26500lbs/12000kgs |
1171g |
|
| D3004 | 5" | 5" | 1" | 25.4mm | 10mm | 47000lbs/21000kgs |
1726g |
|
| D3005 | 6" | 5" | 1" | 26mm | 10mm | 47000lbs/21000kgs |
2096g |
|
| D3006 | 5 1/3" | 5" | 1" | 26mm | 10mm | 47000lbs/21000kgs |
2000g |
|
| D3007 | 5 1/3" | 5" | 7/10" | 18mm | 8mm | 11000lbs/5000kgs |
1355g |
|
| D3010 | 6 1/2" | 5 7/10" | 1" | 26mm | 15mm | 44000lbs/20000kgs |
2536g |
|
| D3012 | 5 1/2” | 5 1/10” | 1" | 25mm | 11mm | 44000lbs/20000kgs |
2036g |
|
Quality Certification
To meet the quality standard of European customer, we have tested parts quality according to European standard, and got CE certificate for the forged D Ring.
Product Packaging
1. Packed in cartons, and shipped in pallets, also support to customer’s other requirements.
2. Gross weight of each carton is no more than 20kgs, providing friendly weight to workers for moving.
